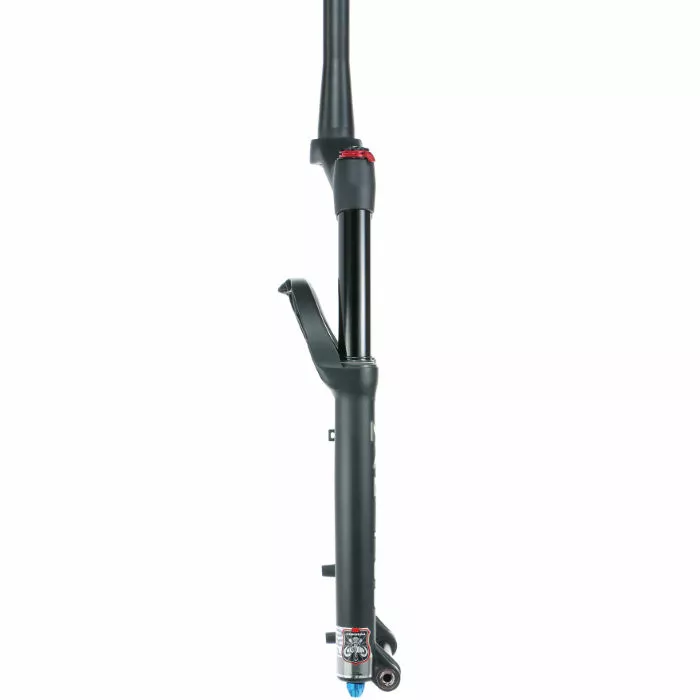

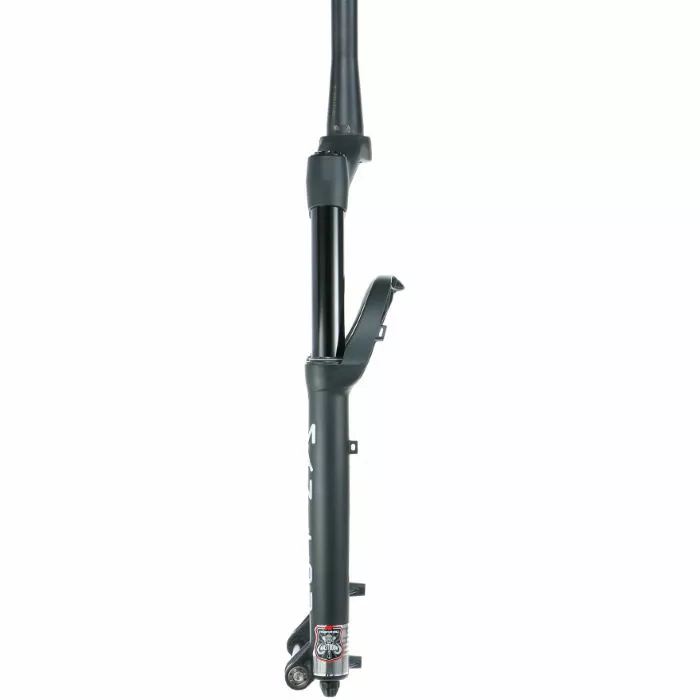

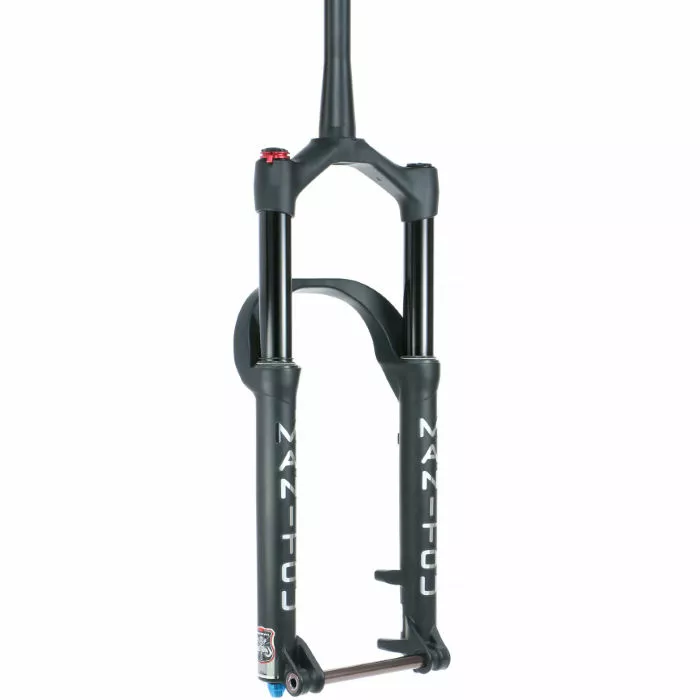

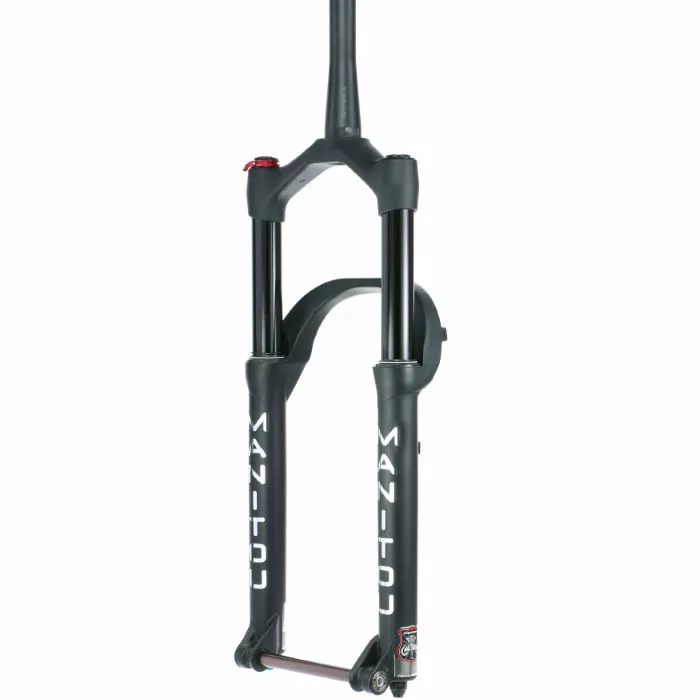

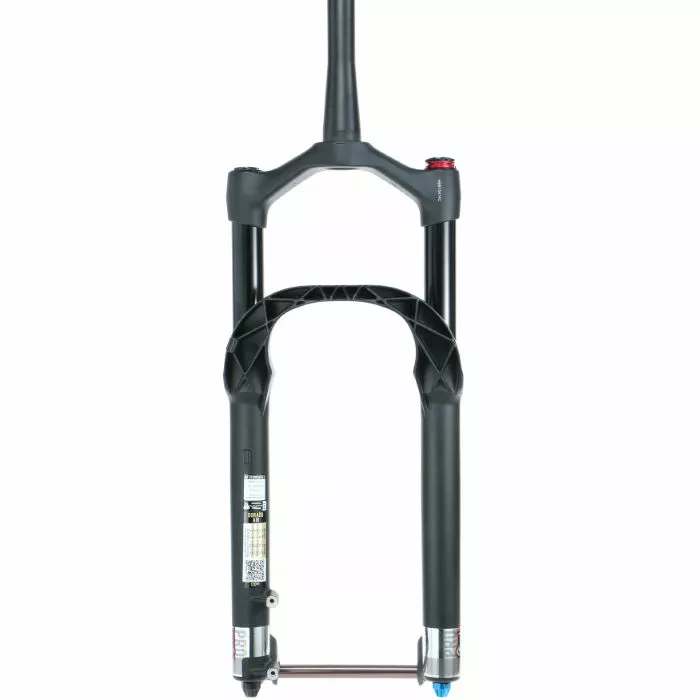

Offering real-world trail suspension for fat bikes, the Manitou Mastodon Pro Suspension Fork features a Dorado Air Spring, MC2 compression damping and TPC rebound damping.
Specifically designed for fat bikes, this high-quality suspension fork provides dependable performance in all temperatures, working equally well in winter or summer, soaking up chatter and big hits. Manitou has equipped it with a 7000 series butted aluminium construction on its legs, which makes it tough and durable as you conquer the most demanding of trail conditions. It also features a forged aluminium deep bore hollow crown for high strength and extra stiffness on your ride. Thanks to its 34mm trail chassis, it delivers precise steering and handling, making it prepared for wherever your next fat bike ride takes you.
Fat Bike Fork with Dorado Air Spring
Manitou has equipped this fat bike fork with a wide range of adjustability, so you can dial in your favourite settings to match your riding style or the terrain conditions. It’s kitted out with a Dorado Air Spring with Incremental Volume Adjust (IVA) for impressively smooth front-end suspension performance, while its MC2 compression damping and rebound half cartridge adjustable TPC soak up any knocks or hits. With adjustable Air, Air Volume, Rebound, Low Speed (LS) and High Speed (HS) compression, this model makes it easy to tweak its settings for a more rider-tuned feel on your fat bike.
The Manitou Mastodon Pro Suspension Fork is available in two different ride height options to choose from. The extended ride height version fits up to 26×5.15” / 27.5×4.5” tyres. The standard ride height version fits up to 26×4” / 27.5×3.8” tyres on the snow, or taking on shimmering hot sand like a pro. All-temperature performance born of frigid winter ride-testing.
Additional Item Top Features:
– Travel: 120mm (Adjustable up to 140mm)
– Adjustments: Air, Air Volume, Rebound, LS and HS compression
– Wheel Size: 26/27.5″
– Offset: 51mm
– Ride Height: 511-561mm (Standard) 531-571mm (Extended)
– Brake Post Mount: 180mm (203mm Max)
– Max Tyre Size: 26×4″ / 27.5×3.8″ (Standard); 26×5.15″ / 27.5×4.5″ (Extended)
– E-Pac: Yes
Manufacturer’s Part Numbers:
191-36890-A102 Matt Black Standard 120mm
191-36890-A602 Matt Black Extended 120mm
Topfunktioner:
- Leg Material: 7000 Series Butted Aluminium
- Crown Material: Forged Aluminium, Deep Bore Hollow
- Leg Diameter: 34mm
- Use: Fat bike
- Axle: 15x150mm Hexlock SL
- Steerer Diameter: 1.5″ tapered
- Air Spring: Dorado Air Spring with Incremental Volume Adjust (IVA)
- Damper: MC2 Compression Damping
- Rebound: Half Cartridge Adjustable TPC
- Weight: 2152g (Standard); 2172g (Extended)
