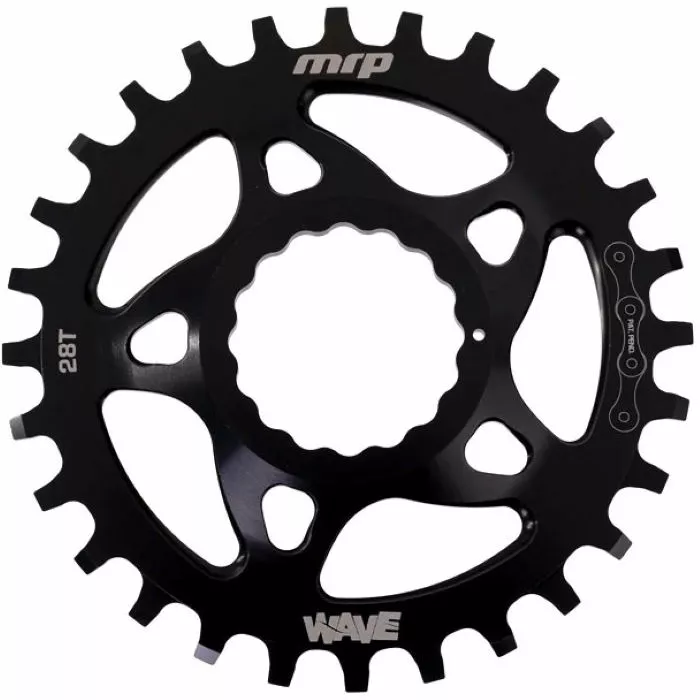

MRP Wave Chainring – Race Face

Featuring a durable CNC-machined 7075 aluminium build with an exclusive Wave pattern, the MRP Wave Chainring – Race Face is ready for the demands of modern mountain bike (MTB) riding.

The Wave pattern applies alternating lateral force to each chain link to actively retain links to the ring – going beyond narrow/wide implementation that relies solely on friction. MRP’s Wave tooth pattern swings right to left, grasping the interior of the chain for retention, but allowing room for mud, debris, and grit to escape. The Wave design creates more open areas for mud and debris evacuation and preserves chain retention in adverse conditions – one of many “Achilles’ Heels” of narrow/wide designs.

Designed with mindful consideration of system friction, the Wave design actively engages the chain but yields much less concentrated wear than competing designs, spreading the load over large surface areas instead. Machined from durable, long-wearing 7000-series aluminium.

Wave Chainring Technology Advancements

The MRP Wave chainring technology utilises a host of features to provide robust chain handling and retention characteristics while providing market-leading durability.

– 50mm (standard).
– Tooth faces displaced from nominal centreline to provide active and positive lateral engagement of every chain link with a chainring tooth.
– Alternating lateral force to each chain link to actively retain links to the ring.
– Less surface contact between chainring and chain creating minimal friction and maximum retention.
– Equal tooth thickness on the entire chainring to allow for maximum mud-shedding clearance.
– Tooth design allows for reduced weight chainrings over competitor technology.

Manufacturer’s Part Numbers:

CRMRWR28 Black 28T 9/10/11 Speed
CRMRWR30 Black 30T 9/10/11 Speed
CRMRWR32 Black 32T 9/10/11 Speed
CRMRWR34 Black 34T 9/10/11 Speed
CRMRWR36 Black 36T 9/10/11 Speed

Topfunktioner:

• Material: CNC-machined 7075 Aluminium (Made in USA)
• Use: Mountain Bike (MTB)
• Mount Type: Race Face CINCH Direct Mount
• Compatibility: Race Face Cinch direct mount cranksets
• Teeth Type: Standard teeth
• Chainline: 49mm with RXC and RF134 spindles, 50mm CL with RF134 spindle
• Compatibility: Shimano 1×9/10/11 speed and SRAM 1×9/10/11/12 speed drivetrains
• Number of Chainrings: Single
• Not reversible
• Designed for 1x drivetrains
