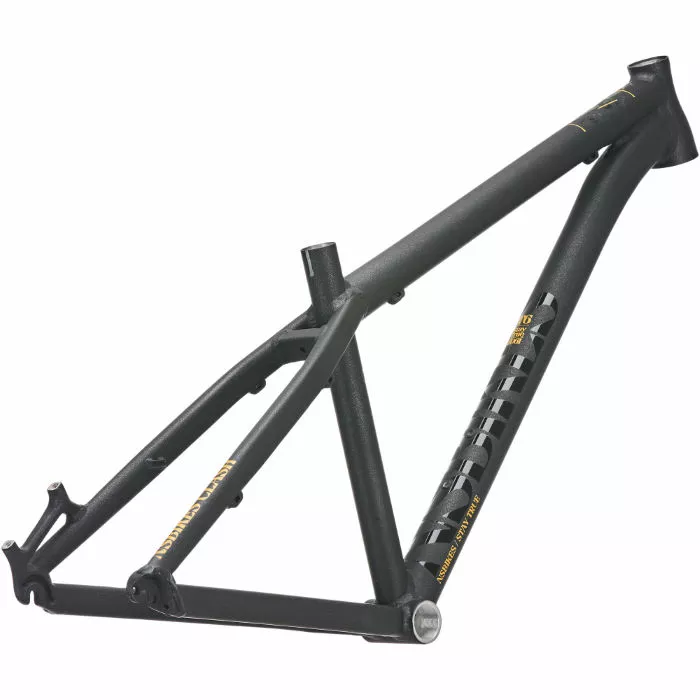

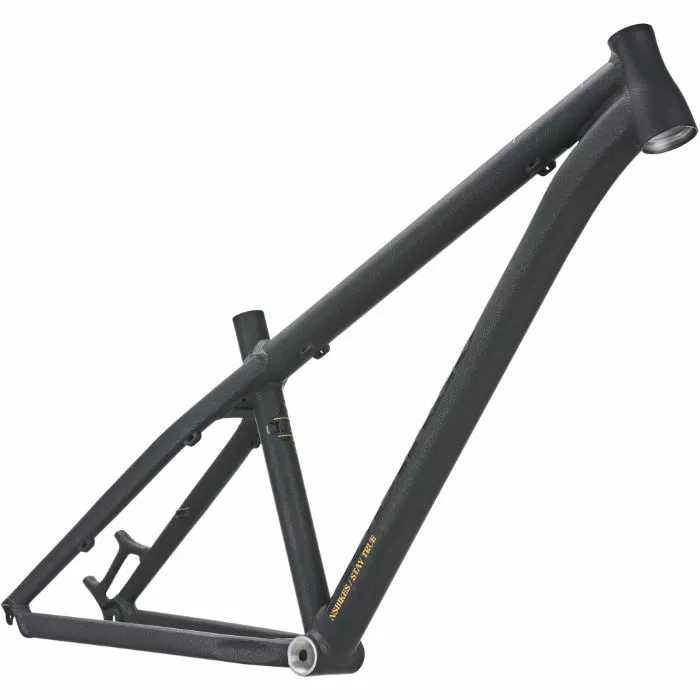

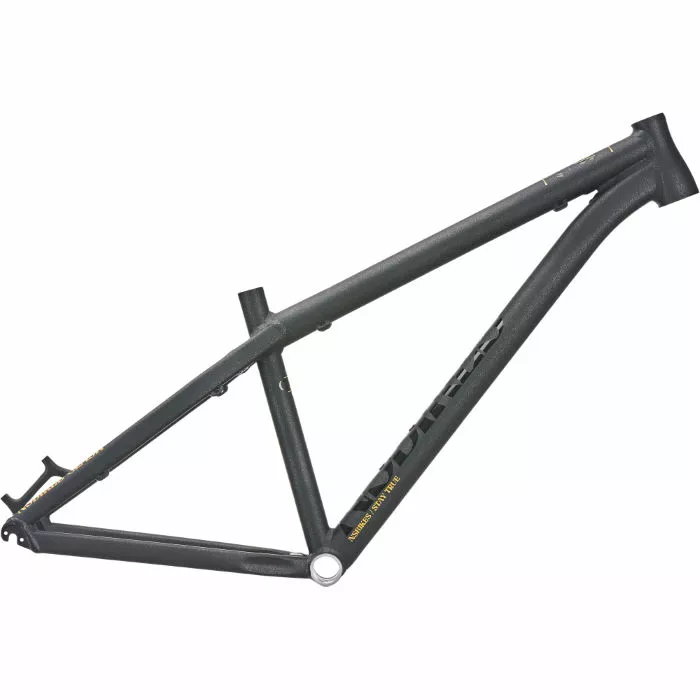

Ns-bikes NS Bikes Clash Frame (2022)

Ideal for all-terrain riding for any level ability, the NS Bikes Clash Frame is tough, agile and versatile. It features alloy construction that’s disc brake compatible for 150mm forks and has a max tyre clearance of 26x 2.4″.

The Clash is a true all-around fun bike frame. Tough and light, simple and multi-functional. It will be the perfect base for building up a custom all-around fun bike that will feel great to ride on any kind of challenging terrain. The frame is designed to tackle the urban jungle, rip at the pump track and let you ride comfortably back home as well. Learn how to bunnyhop, rail berms or clear your first small doubles. Our fun machines are built with the same DNA as our dirt and mountain bikes and come in multi-functional, budget-friendly packages that riders of all levels will love. The Clash frame has a fully integrated taper head tube which will accept forks with both standard 1 1/8” or tapered 1.5 – 1 1/8” steerer tubes.

Key Features:

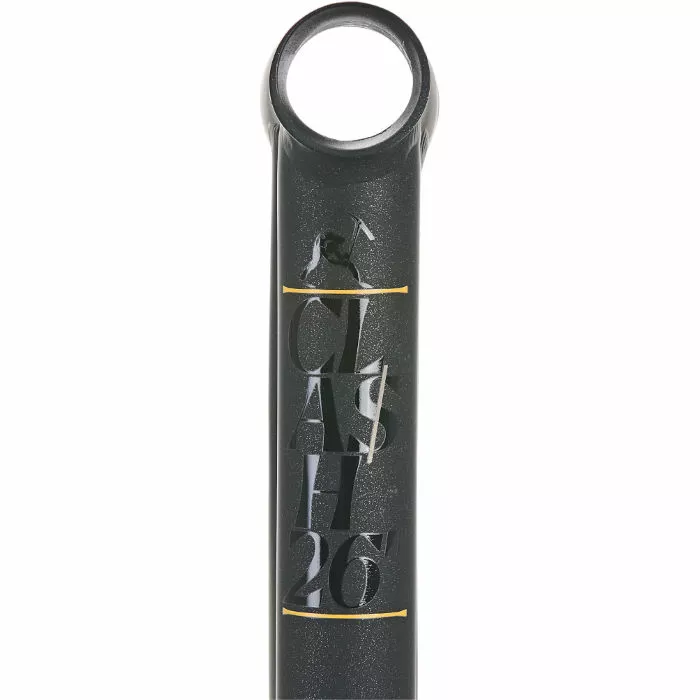

True all-round fun bike frame for 26” wheels
Tough and light, simple and multi-functional
Perfect urban & pumptrack frame
Low standover and slack head angle
Material: AL6061-T6, custom formed and butted tubes
Recommended fork travel: 120-150mm

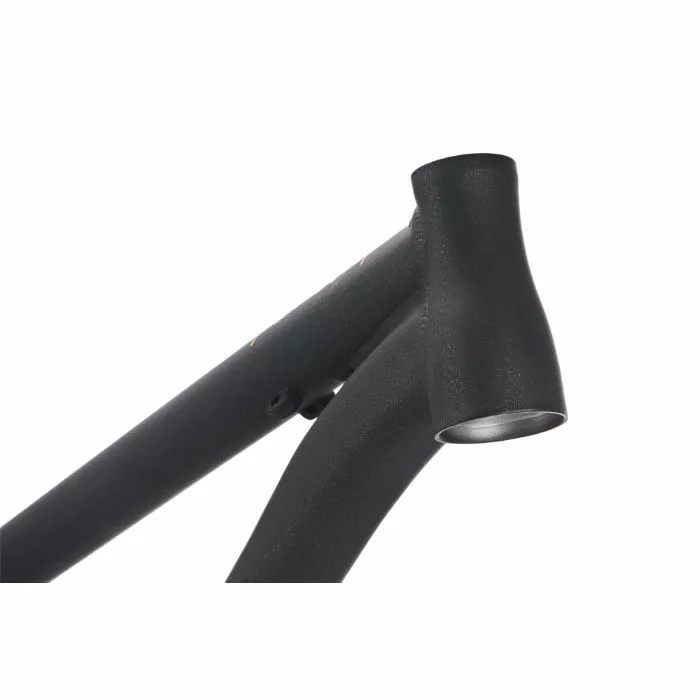

Headtube: IS42/IS52, headtube length: 115mm
Fits forks: standard 1-1/8” or tapered 1-1/8” – 1.5″  steerer tubes

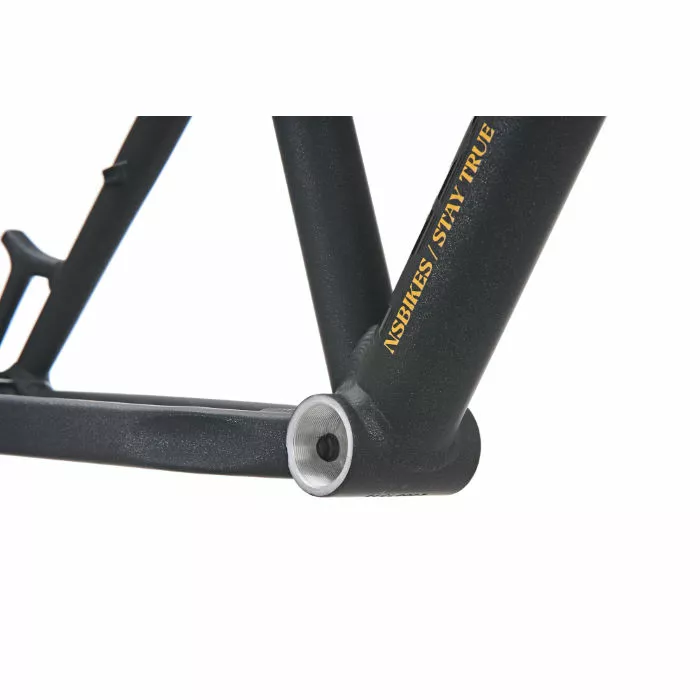

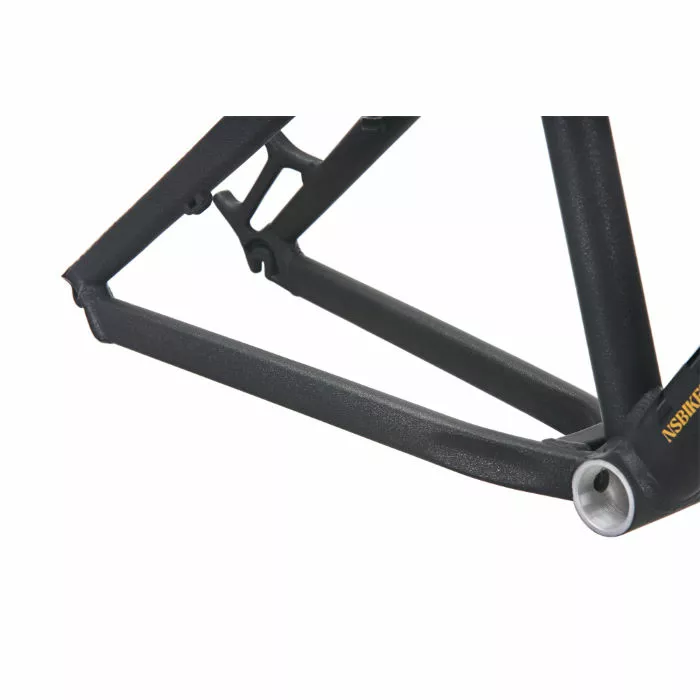

BB: threaded 73mm
Biggest chainring: up to 36t
Front derailleur: top pull, dia.34.9
Seatpost/seatclamp: seatpost: 30.9 / seatclamp: 34.9
Maximum tyre size recommended: 26x 2.4”

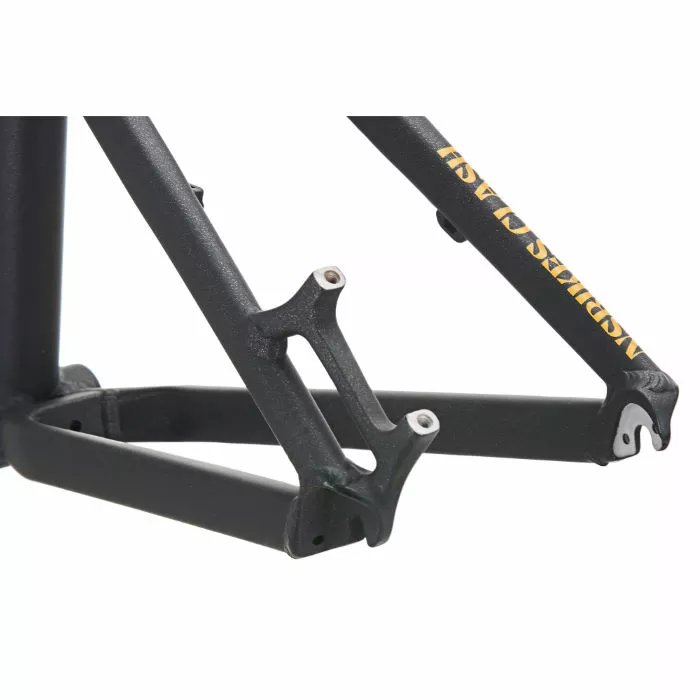

Disc brake: post mount, max rotor size: up to 185mm

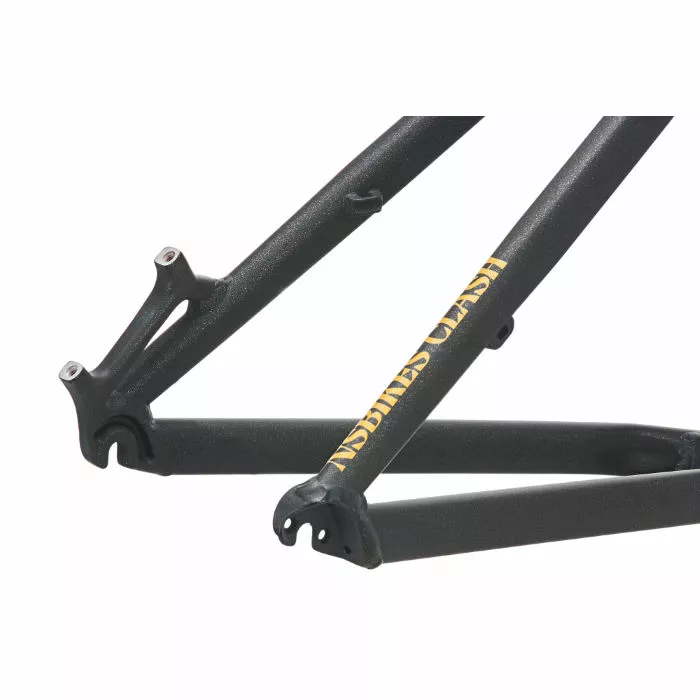

Hub spacing: 135×10
Weight: 2.02kg (M size)

Topfunktioner:

• Material: AL6061-T6, custom formed and butted tubes
• Recommended fork travel: 120-150mm
• Fits forks: standard 1-1/8″ or tapered 1-1/8″ – 1.5″ steerer tubes
• BB: threaded 73mm
• Biggest chainring: up to 36t
• Maximum tyre size recommended: 26x 2.4″
• Disc brake: post-mount, max rotor size: up to 185mm
• Hub spacing: 135×10
• Weight: 2.02kg (M size)
