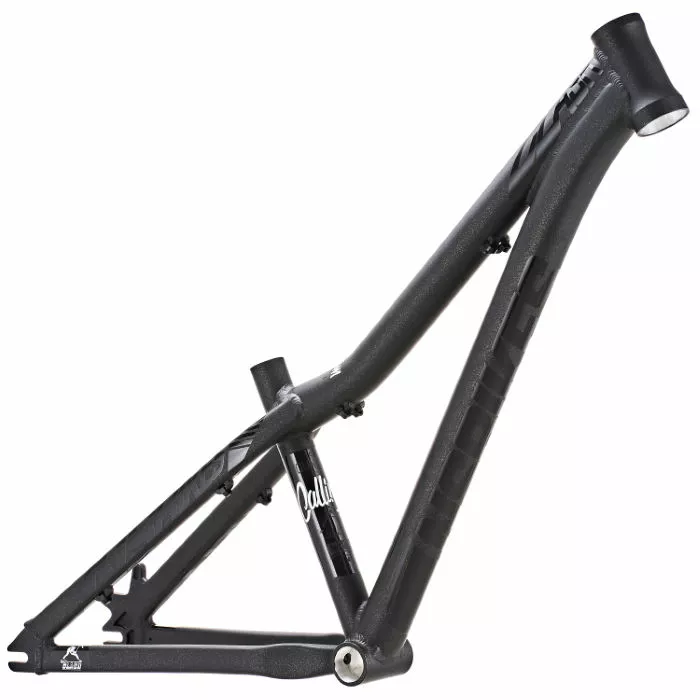

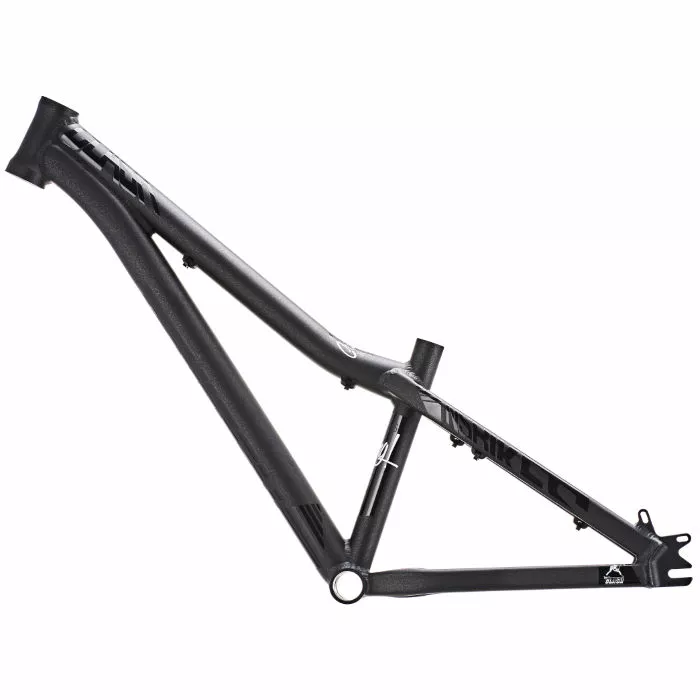

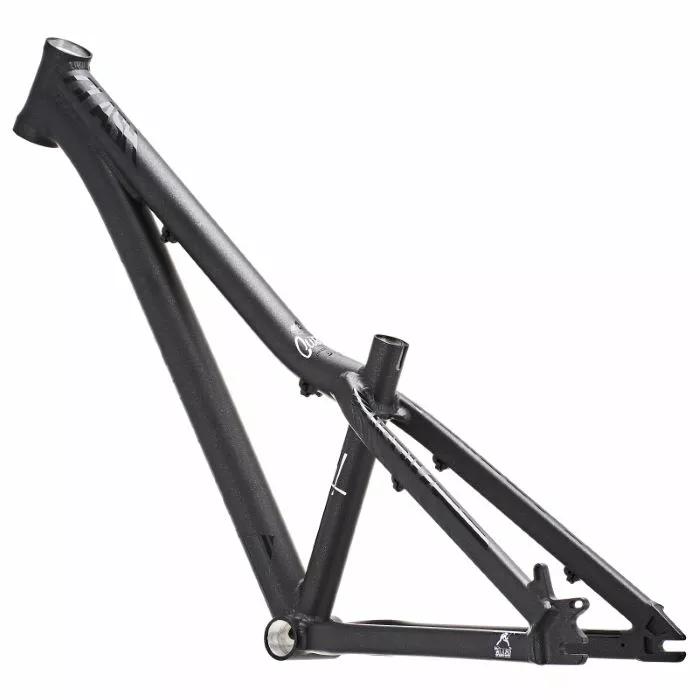

Ns-bikes NS Bikes Clash JR Frame (2022)

The perfect hardtail frame for having fun on the tarmac or on the trails, the NS Bikes Clash JR Frame gives younger riders a stylish and well-equipped frame that handles anything they can throw at it.

The Clash JR is an all-round kid’s mountain bike (MTB) designed for riders of about 130 – 150 cm. One of the key features is compatibility with 24” and 26” wheels. Therefore you can start with smaller wheels and then grow the bike as your kid gets older. It will be the perfect base for building up a custom all-around bike that will feel great to ride hard on any kind of challenging terrain. This frame is designed to tackle the urban jungle, rip at the pump track and ride comfortably back home as well. It’s a true all-around fun bike built around a tough and light aluminium frame.

Key Features:

Perfect frame for building a true all-round kid’s bike
Will work with 24” and 26” wheels, so it can grow with your child
Tough and light, simple and multi-functional
Depending on the build, it can be used for anything from jumping, pumptracks or Cross Country (XC) riding
Material: AL6061-T6, custom formed and butted tubes
Recommended fork travel: 80-120mm
Headtube: semi-integrated ZS44, head tube length: 115mm
Fits all forks: fits all forks with standard 1-1/8” steerer tubes (forks with taper 1.5 – 1-1/8” steerer tubes can fit ZS44/44 head tube using special headsets with an external lower cup (FSA Orbit ITA-A, ITA-B, Cane Creek XX44)
BB: threaded 73mm
Biggest chainring: up to 34t
Front derailleurs: top pull, dia.34.9
Seat post/seat clamp: seat post: 30.9 / seat clamp: 34.9
Max seat post insertion: 300mm
Maximum tyre size recommended: 24x 2.45”, or 26x 2.3”
Disc brake: IS-2000 disc brake mount, max rotor size: up to 185mm
Rear hub: 135x10mm, horizontal dropouts, suggested bolt-on hubs.
Weight: 1.87kg

Topfunktioner:

• Material: AL6061-T6, custom formed and butted tubes
• Recommended fork travel: 80-120mm
• Biggest chainring: up to 34t
• Front derailleurs: top pull, dia.34.9
• Seat post/seat clamp: seat post: 30.9 / seat clamp: 34.9
• Max seat post insertion: 300mm
• Maximum tyre size recommended: 24x 2.45″, or 26x 2.3″
• Disc brake: IS-2000 disc brake mount, max rotor size: up to 185mm
• Rear hub: 135x10mm, horizontal dropouts, suggested bolt-on hubs.
• Weight: 1.87kg
