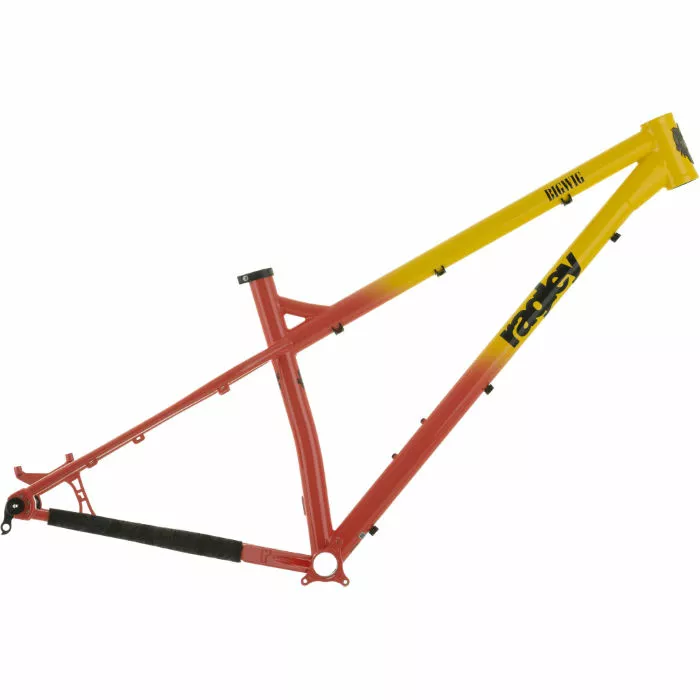

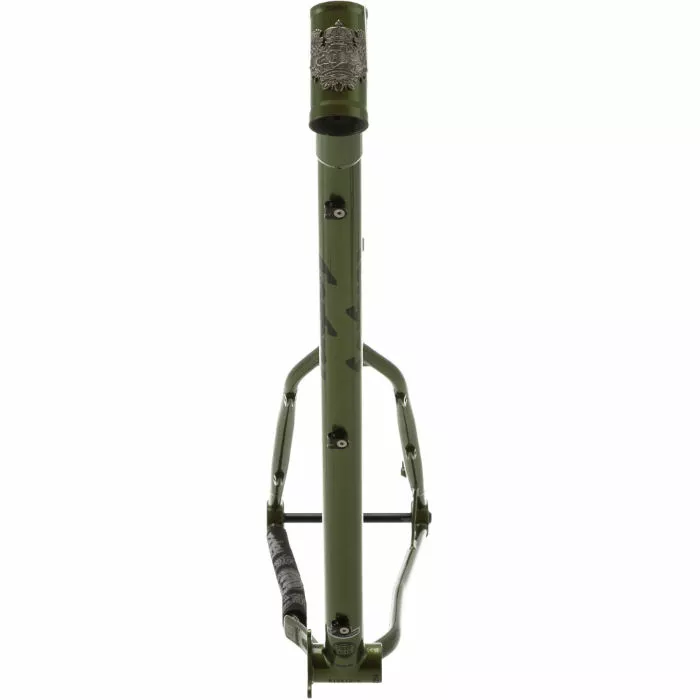

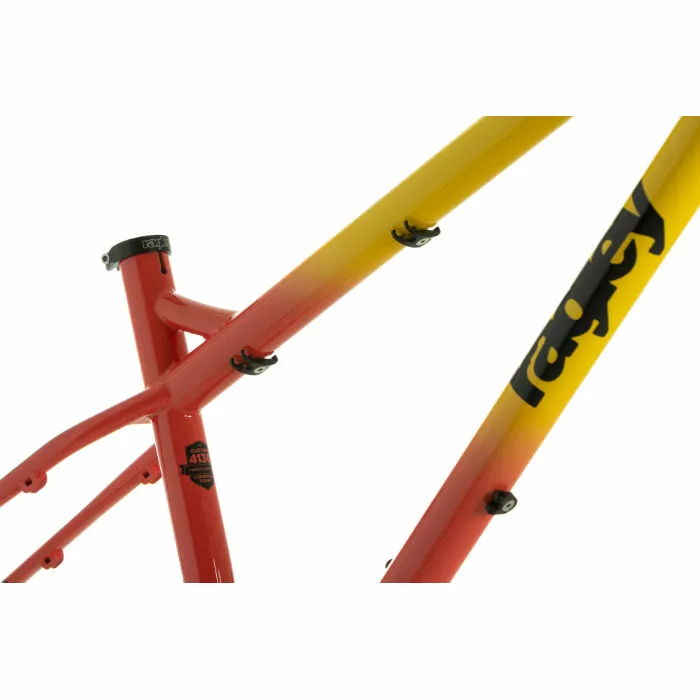

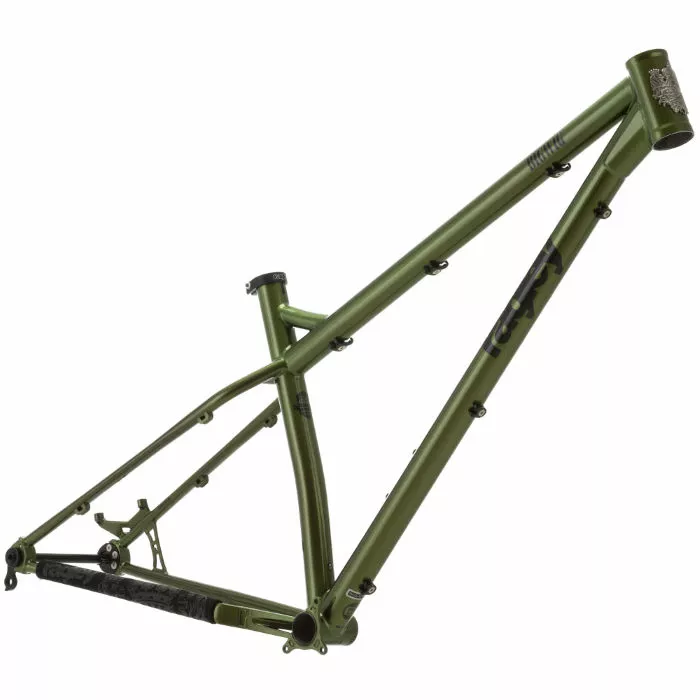

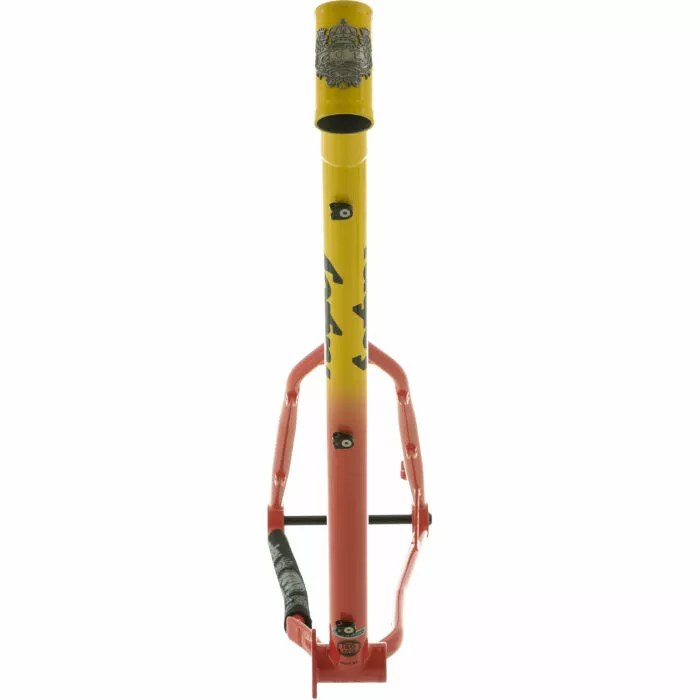

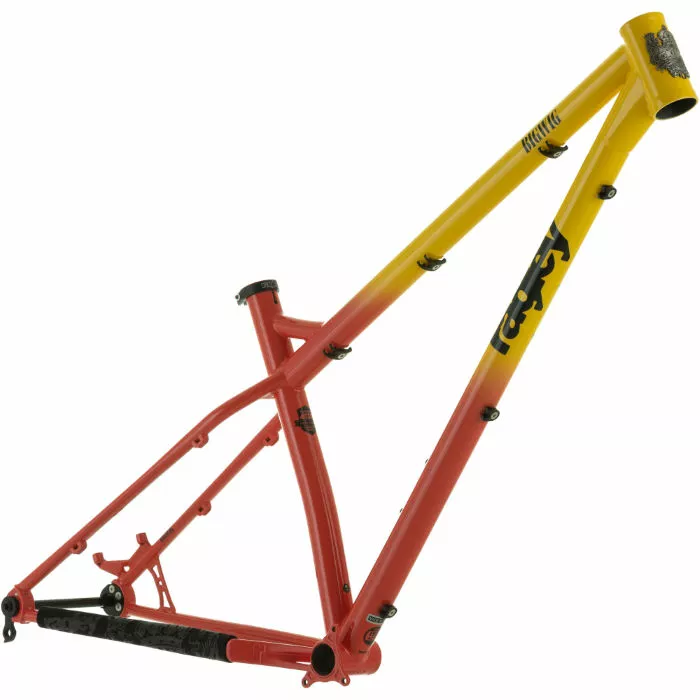

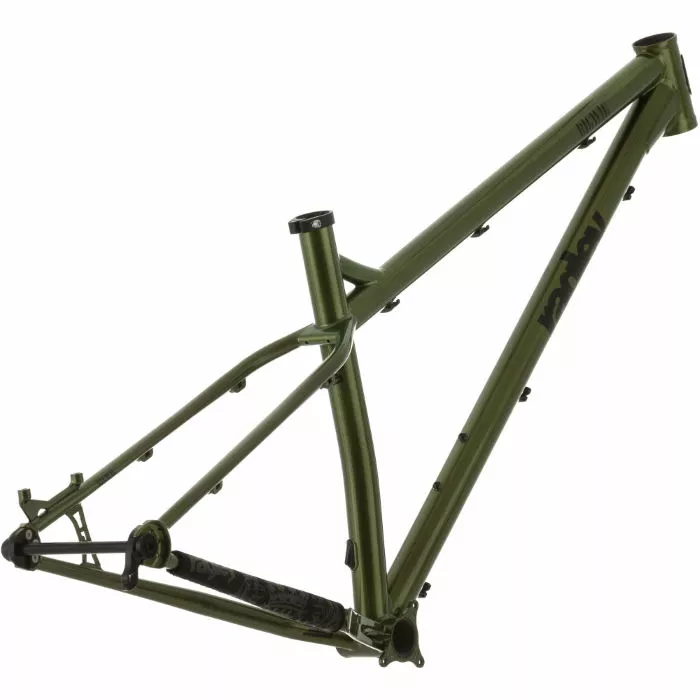

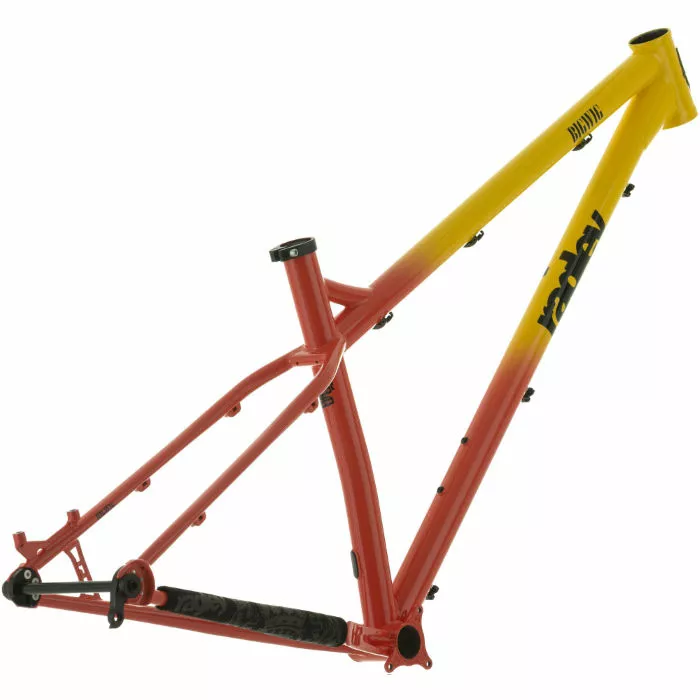

The Ragley Big Wig Hardtail Frame is a big-wheeler for big terrains. It is engineered from strong and lightweight Chromoly (CrMo) steel and is intended for 140 – 160mm-travel suspension forks and rolls upon 29″ wheels with a max tyre width of 2.5.&qu
The Big Wig 29er is a commanding bike; the big-wheeled counterpart to the infamous Blue Pig.
The 29” wheels give it all-out speed like no other, with tried and tested geometry putting you in complete control between the choppiest of corners. The Big Wig is at home being piloted at an enduro race, taking on a multi-day adventure or just smashing laps of your favourite trail centre. Like so many of our bikes, it’s a versatile tool to be ridden almost anywhere, by anyone.

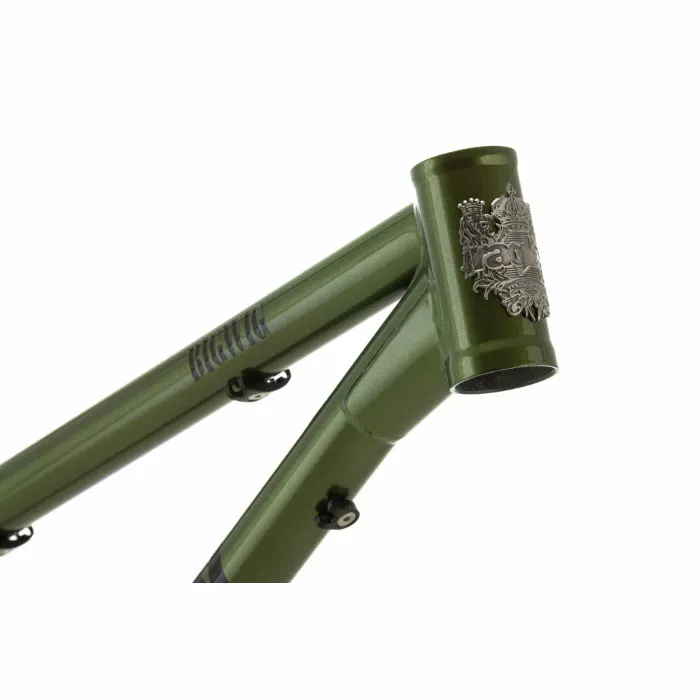

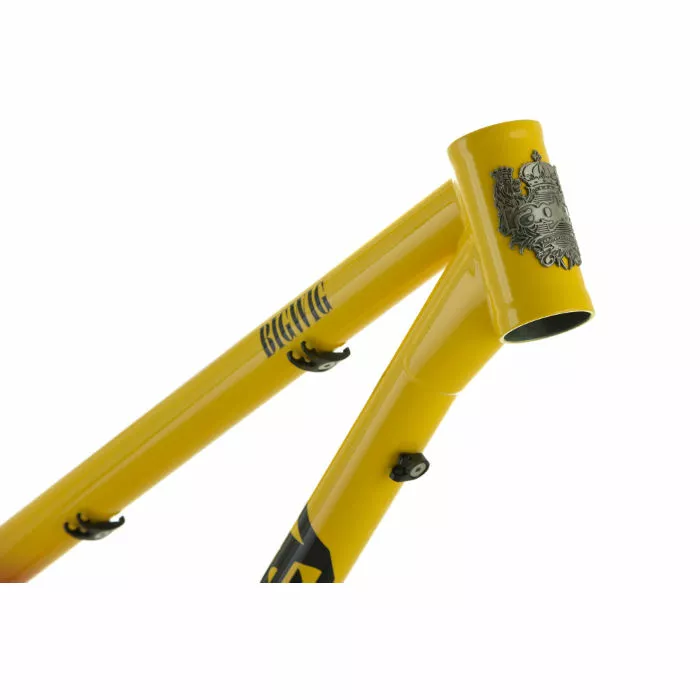

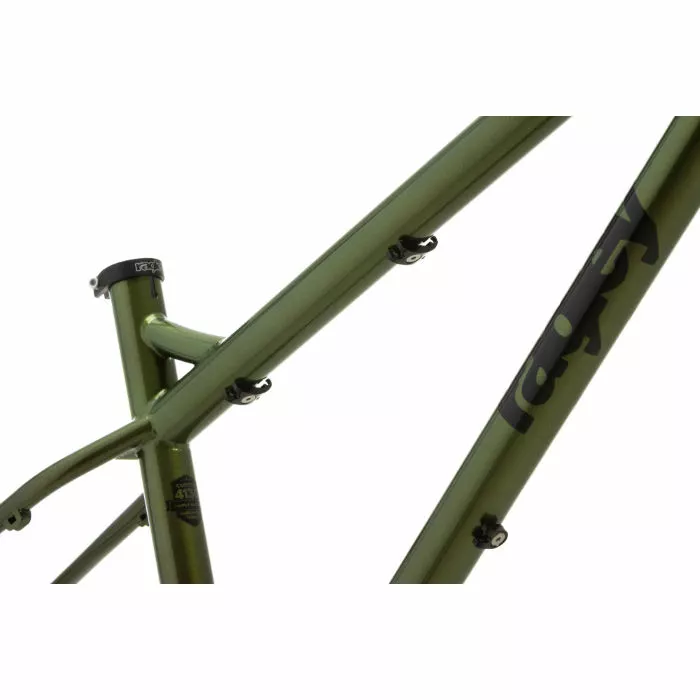

The Big Wig frameset features ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. Our steel frames are engineered from custom triple butted 4130 Chromoly tubing for a frame that is stiff but lively and comfortable.
Looking for a true do-it-all bike to deliver the good times well into your riding future? The Big Wig will take you there, at speed…
Features:
5 Year Warranty and lifetime crash replacement
Material: 4130 Chromoly Steel

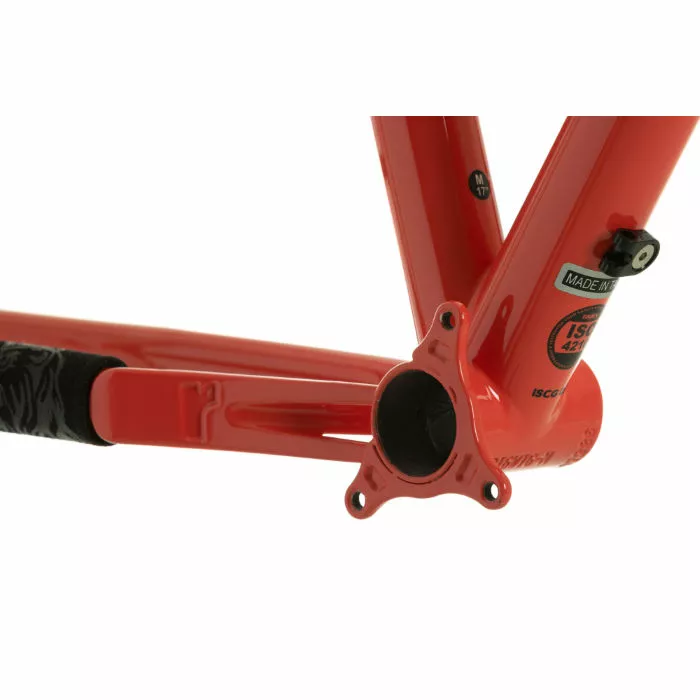

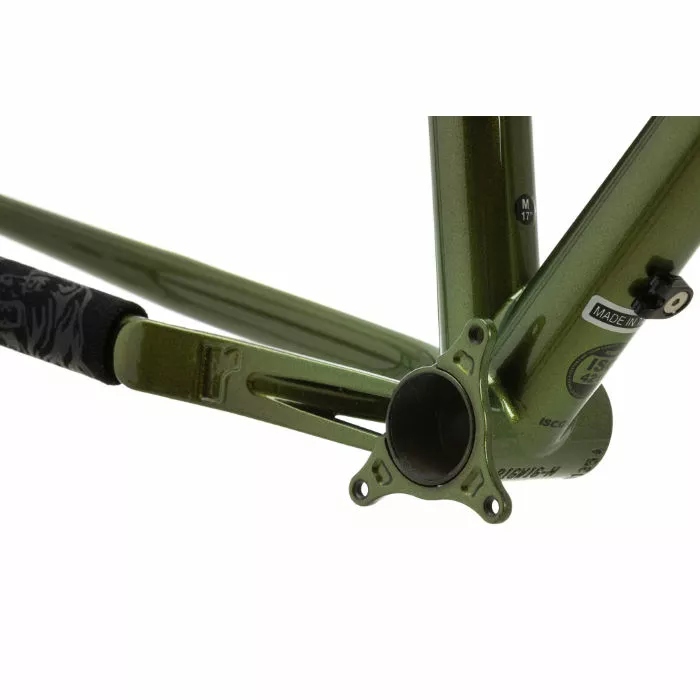

ISCG 05 Tabs
ISO 4210 Certified
Head Angle: 65˚Static
Effective Seat Angle: 74˚
Chainstay Length: 435mm
Seat Post: 31.6mm

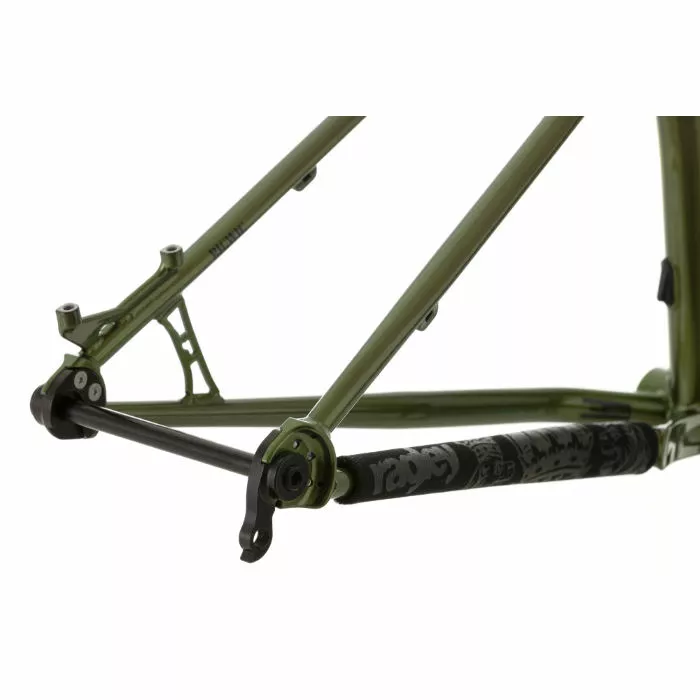

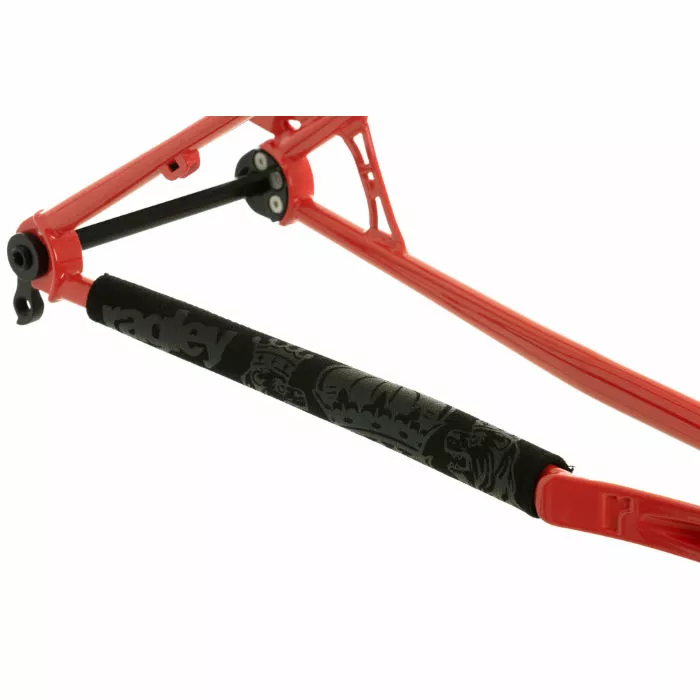

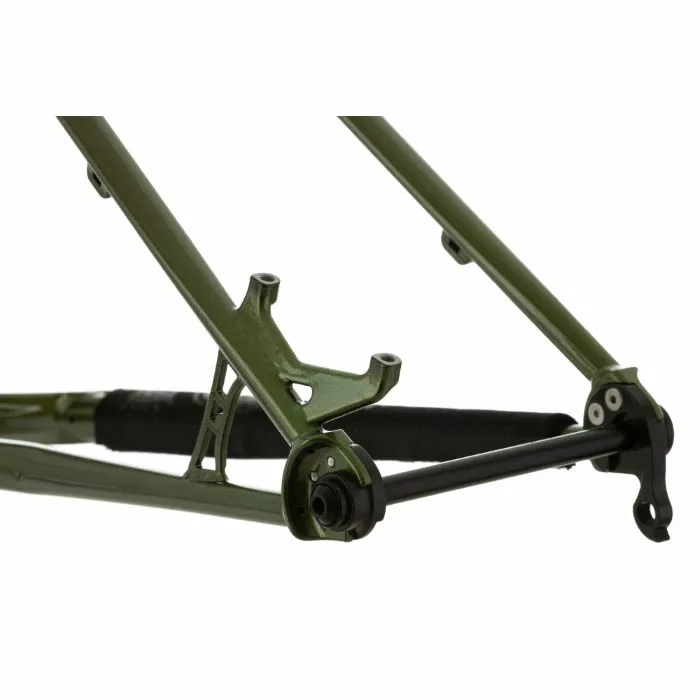

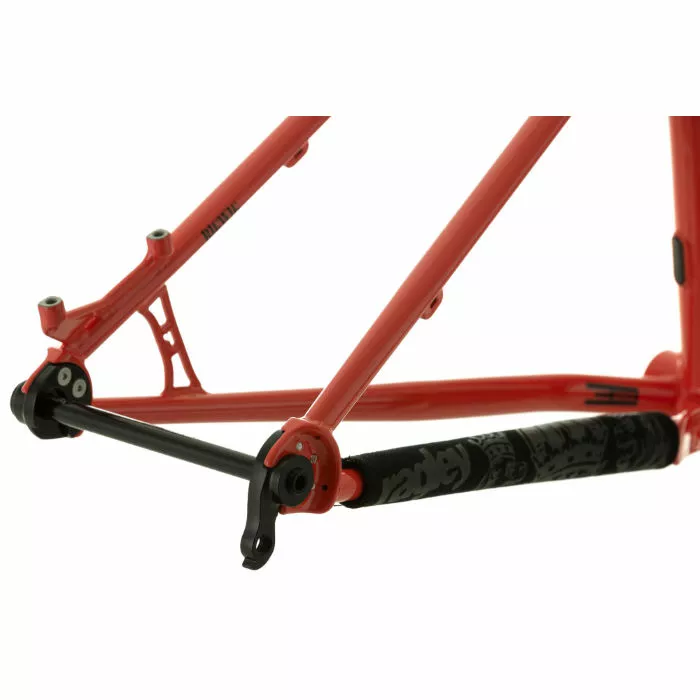

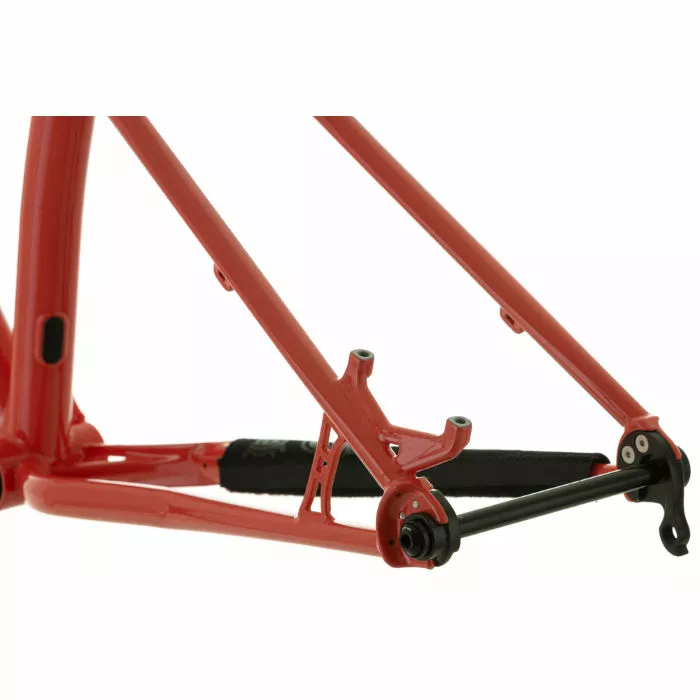

Rear Axle: Ragley 12mm x 148mm Thru-Axle
Seat Collar: 34.9mm
BB Shell: 73mm BSA
Headset: ZS44/28.6
EX44/40
Wheel Size: 29”
Max Tyre Size: 2.5”
BB Drop: -65mm
Recommended Fork Travel: 140mm – 160mm
Weight: Approximately 3.04kg
Topfunktioner:
- 5 Year Warranty and lifetime crash replacement
- Material: 4130 Chromoly Steel
- ISCG 05 Tabs
- ISO 4210 Certified
- Rear Axle: Ragley 12mm x 148mm Thru-Axle
- Wheel Size: 29″
- Max Tyre Size: 2.5″
- Recommended Fork Travel: 140mm – 160mm
- Weight: Approximately 3.04kg
