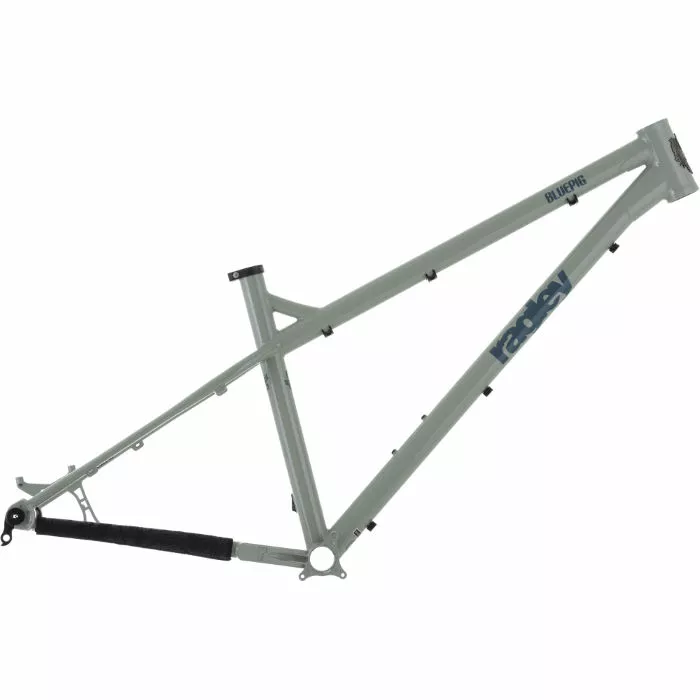

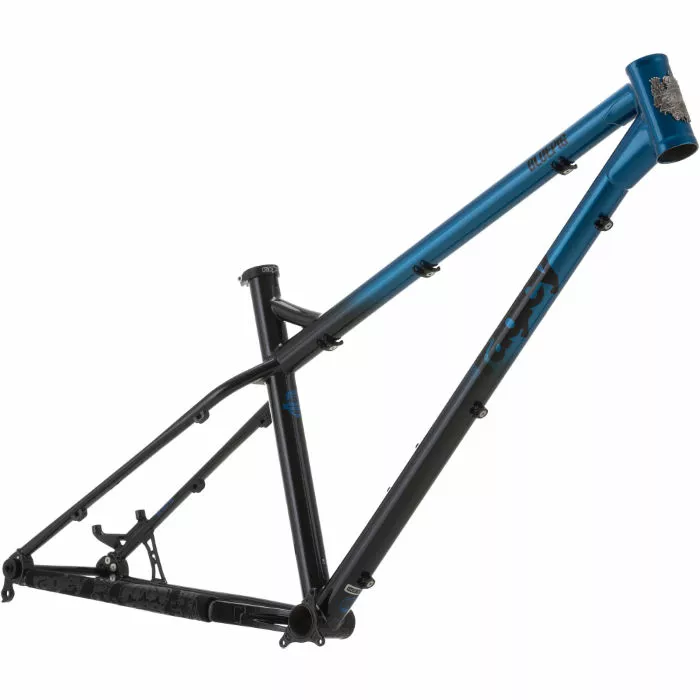

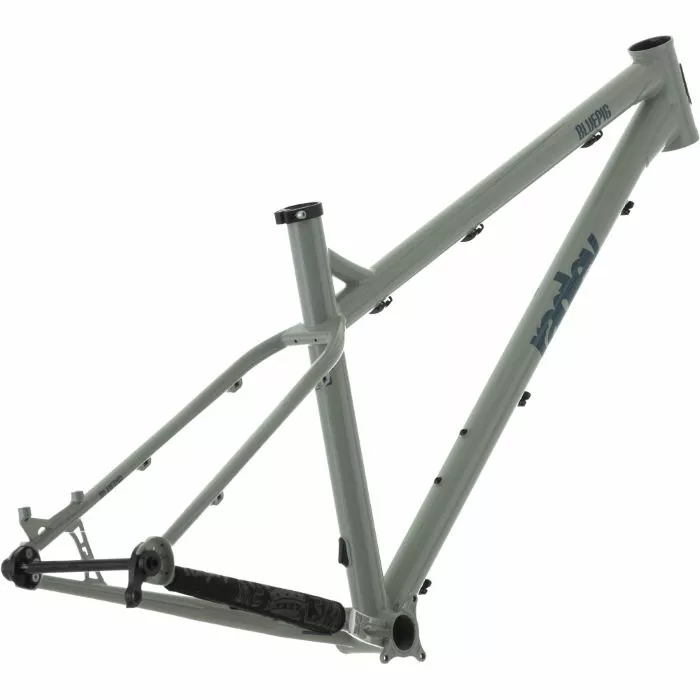

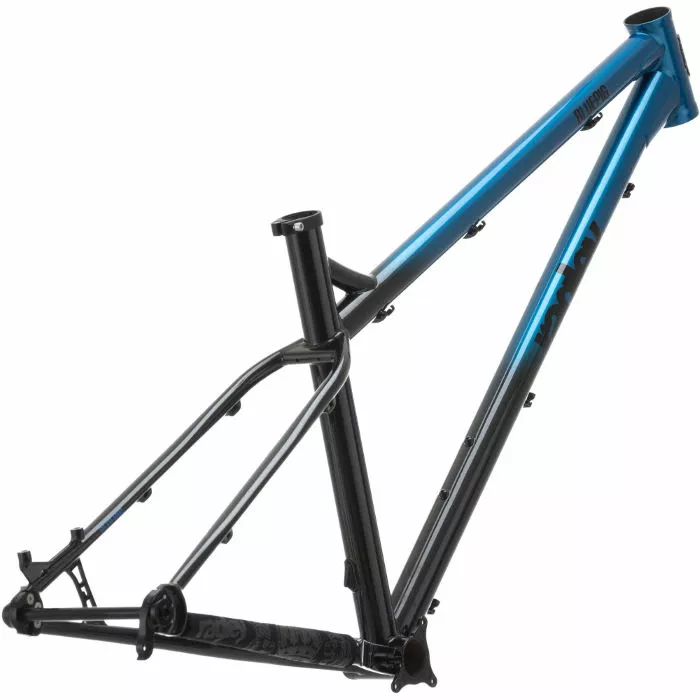

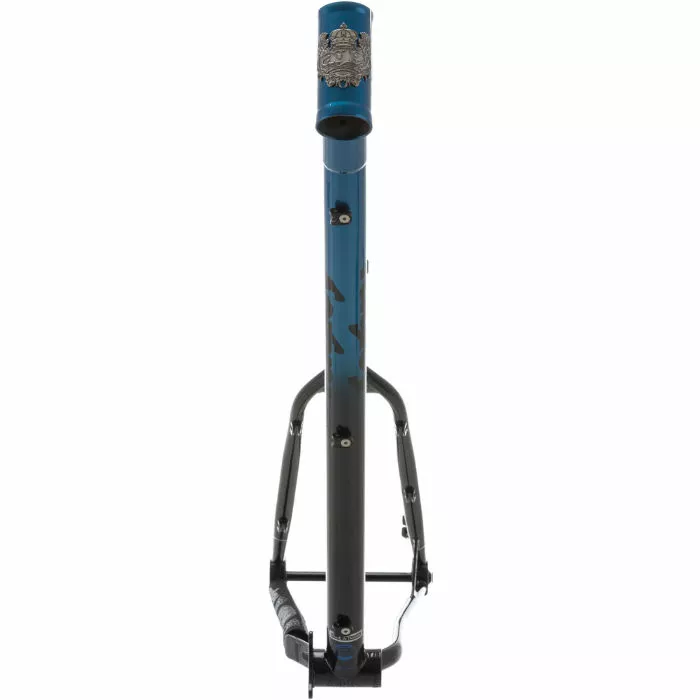

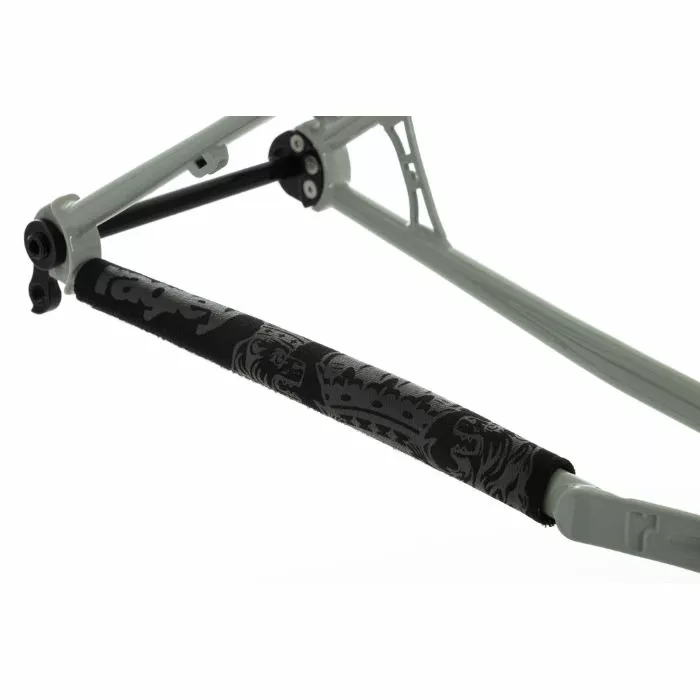

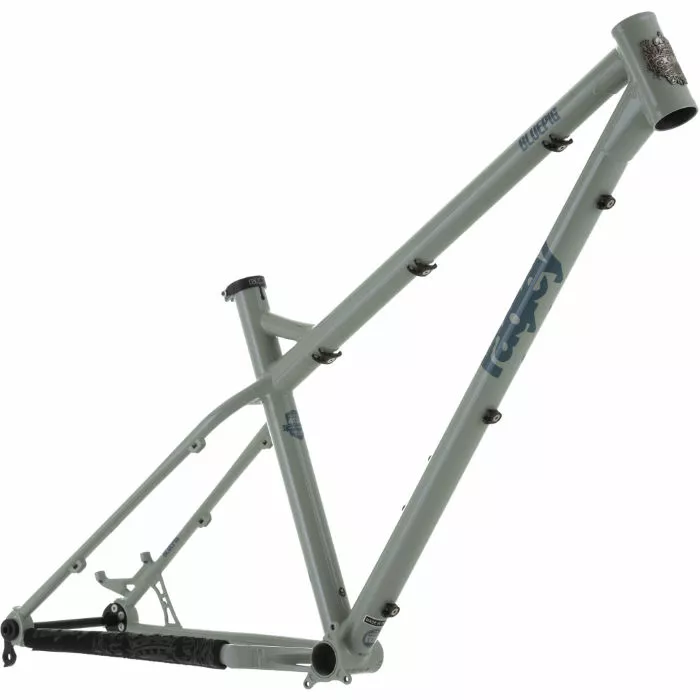

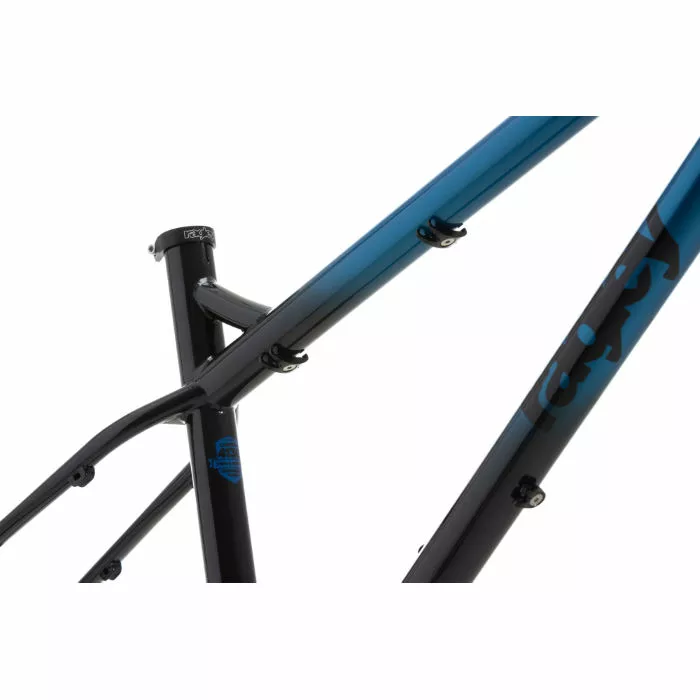

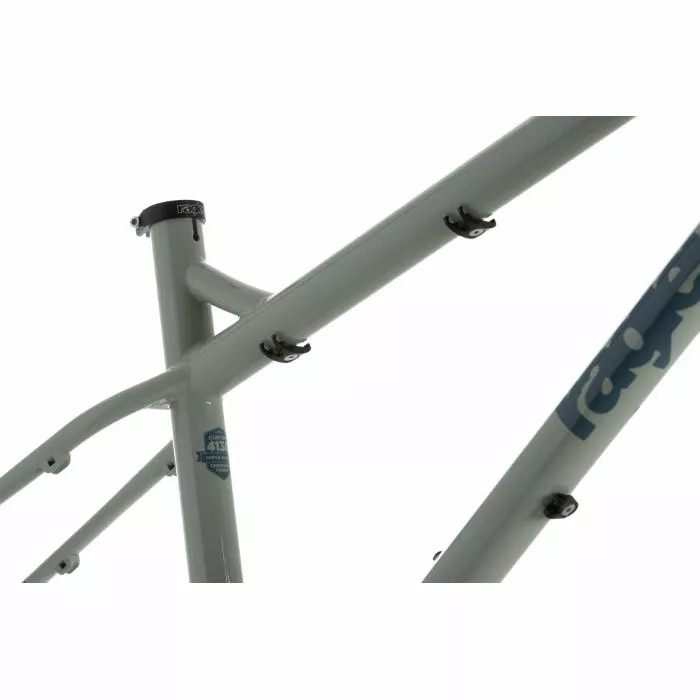

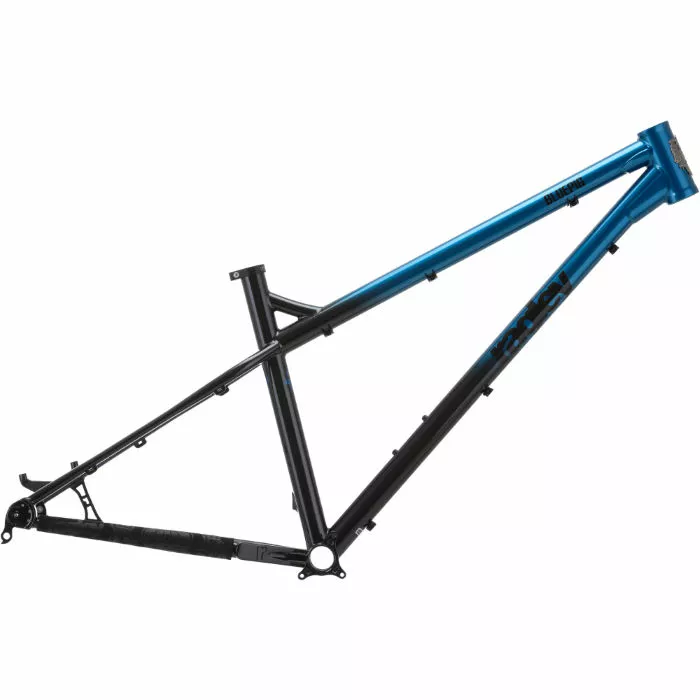

Ragley Blue Pig Hardtail Frame -Grey / Deep Sea

The ideal hardtail frame for hardcore trail riding and all-mountain adventures, the Ragley Blue Pig Hardtail Frame is engineered from 4130 Chromoly Steel and is optimised for use with 150 – 160mm travel suspension forks and up to 2.6″-wide tyres.

If you have heard of Ragley, you already know the Blue Pig name. From the early days of the ‘hardcore hardtail’ it has pushed the geometry envelope and been loved by anyone who rides for all-out grin-inducing fun.

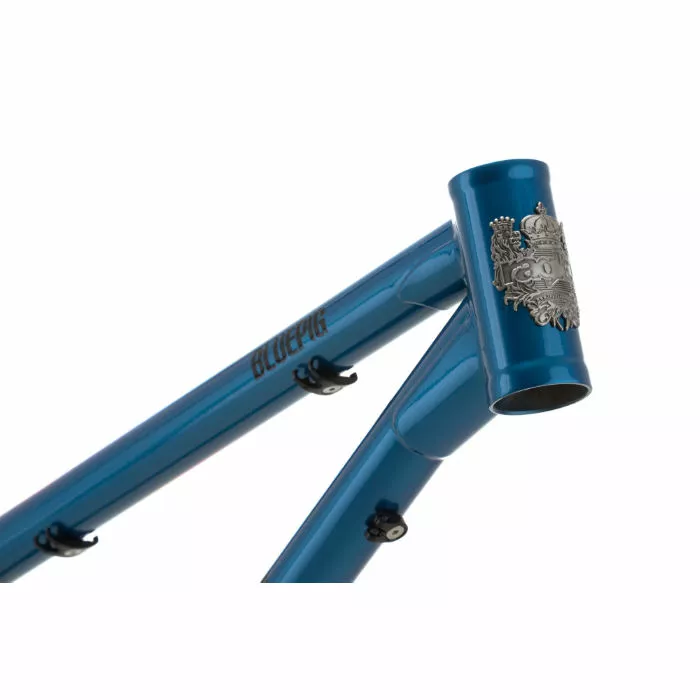

The 2021 Blue Pig keeps the flame burning strong: Custom triple butted 4130 Chromoly (CrMo) tubing, ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. But it’s the geometry that defines it: the 63.75-degree head angle making its rowdy intentions abundantly clear.

Comfortable enough to ride-all-day, tough enough for the bike park and flighty enough to speeder bike through the local woodland loam. The Blue Pig is built to take abuse and inspire confidence when things get gnarly, but it’s not been pillaging the trough; it’s light to ride and quite happy putting in the miles to get to the good stuff.

If you don’t think a hardtail is capable, you’ve been riding the wrong bike…

Features:

5 Year Warranty and lifetime crash replacement
Material: 4130 Chromoly Steel

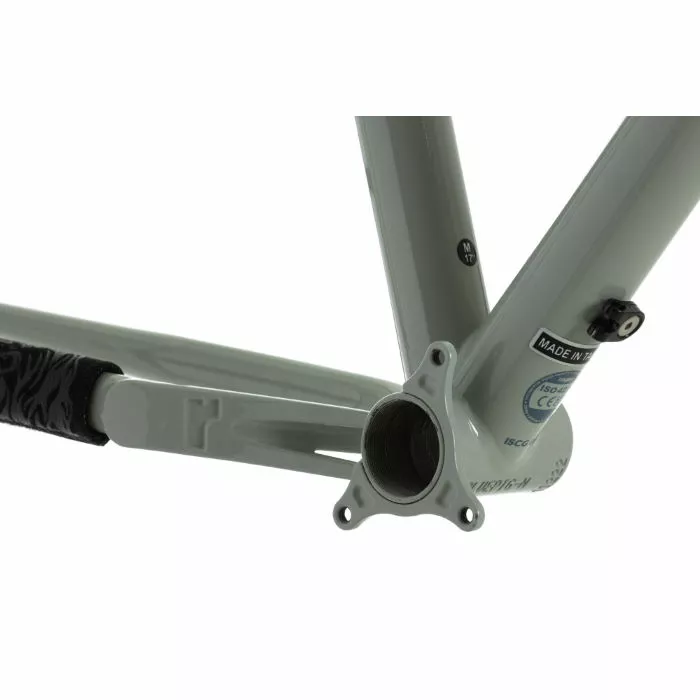

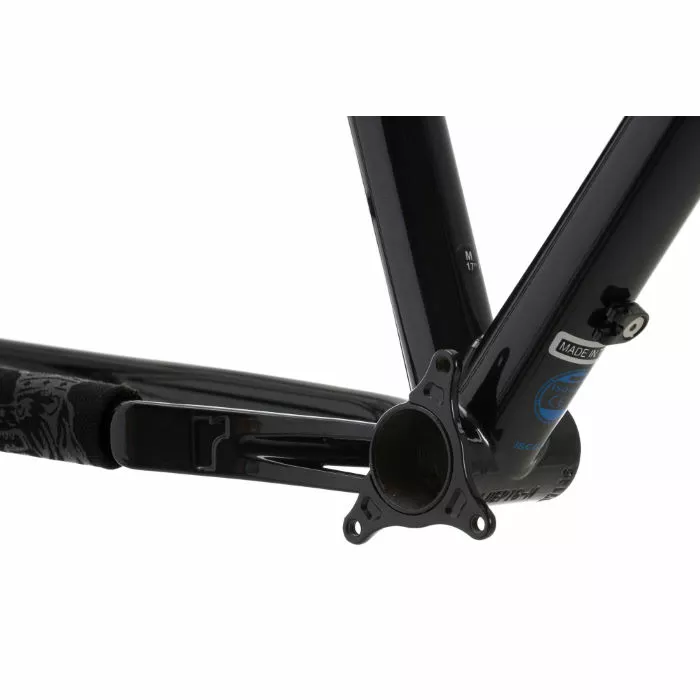

ISCG 05 Tabs
ISO 4210 Certified
Head Angle: 63.75˚Static
Effective Seat Angle: 74˚
Chainstay Length: 425mm
Seatpost: 31.6mm

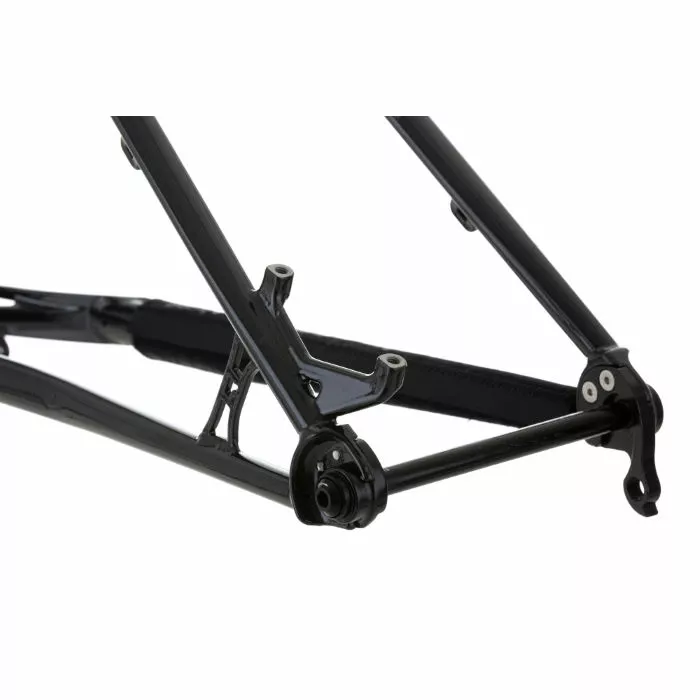

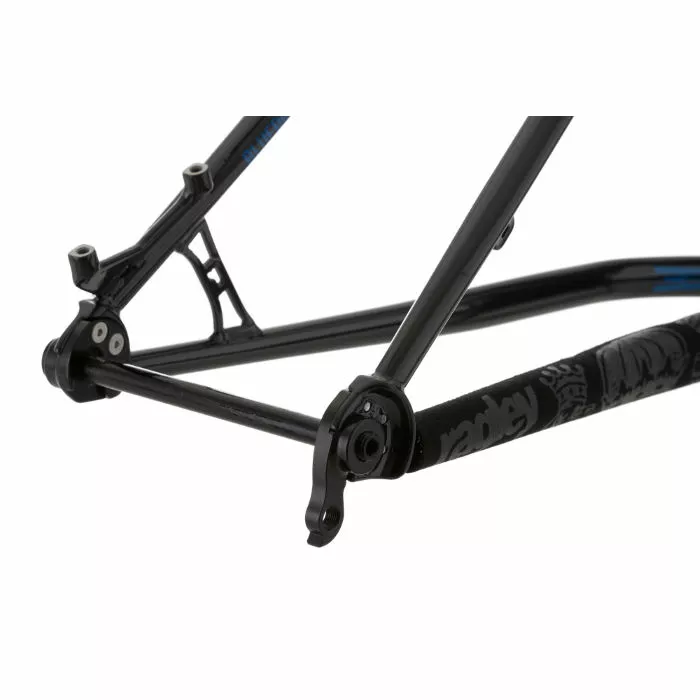

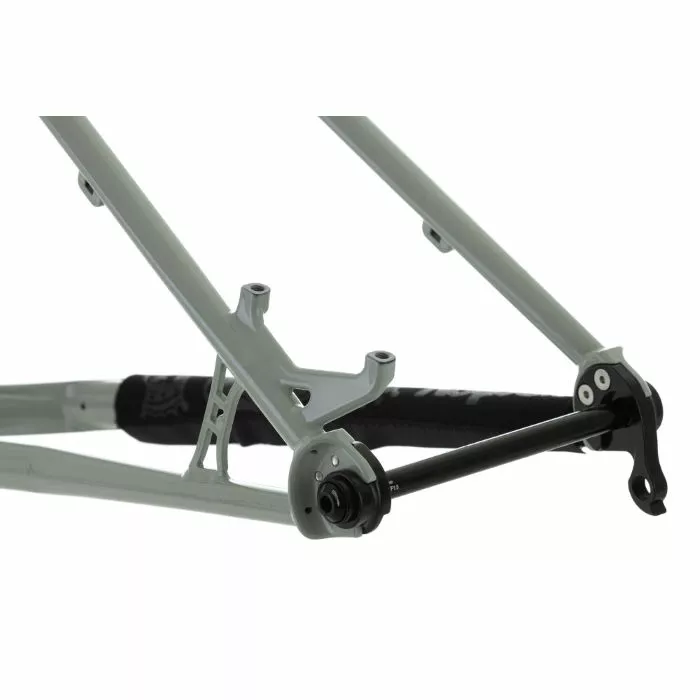

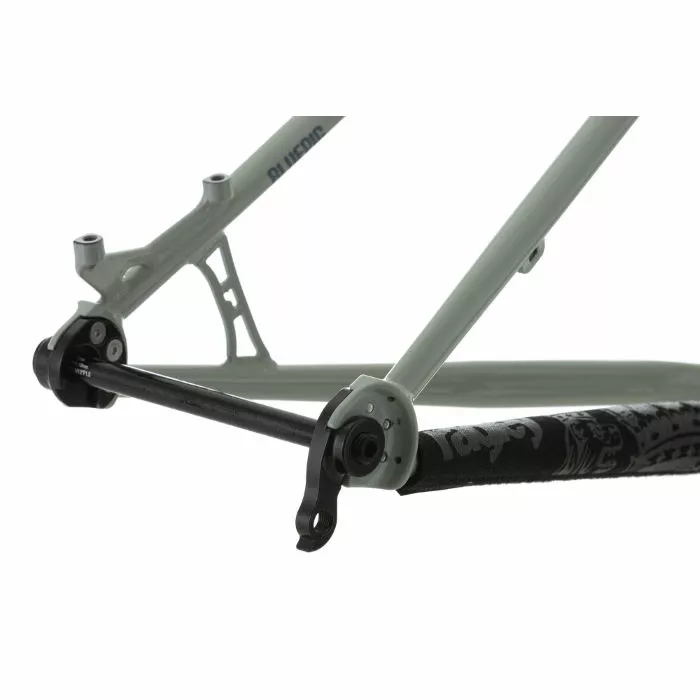

Rear Axle: Ragley 12mm x 148mm Thru-Axle
Seat Collar: 34.9mm
BB Shell: 73mm BSA

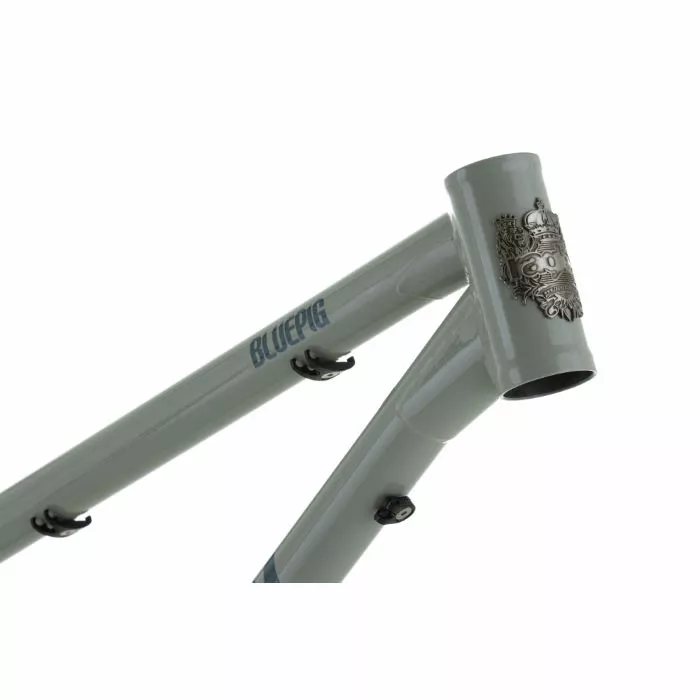

Headset: ZS44/28.6
EX44/40
Wheel Size: 27.5”
Max Tyre Size: 2.6”
BB Drop: -45mm
Recommended Fork Travel: 150mm – 160mm
Weight: Approximately 3.05kg

Topfunktioner:

• 5 Year Warranty and lifetime crash replacement
• Material: 4130 Chromoly Steel
• ISCG 05 Tabs
• ISO 4210 Certified
• BB Shell: 73mm BSA
• Seatpost: 31.6mm
• Wheel Size: 27.5″
• Max Tyre Size: 2.6″
• Recommended Fork Travel: 150mm – 160mm
• Weight: Approximately 3.05kg
